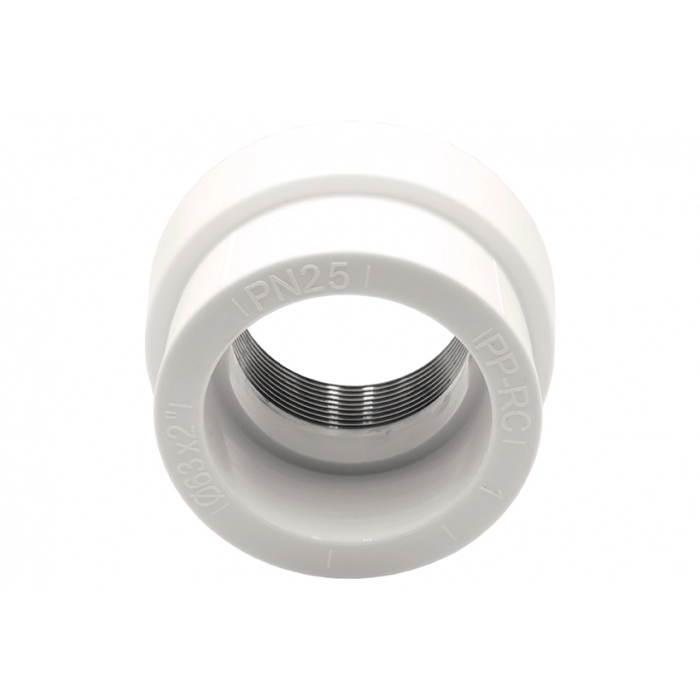

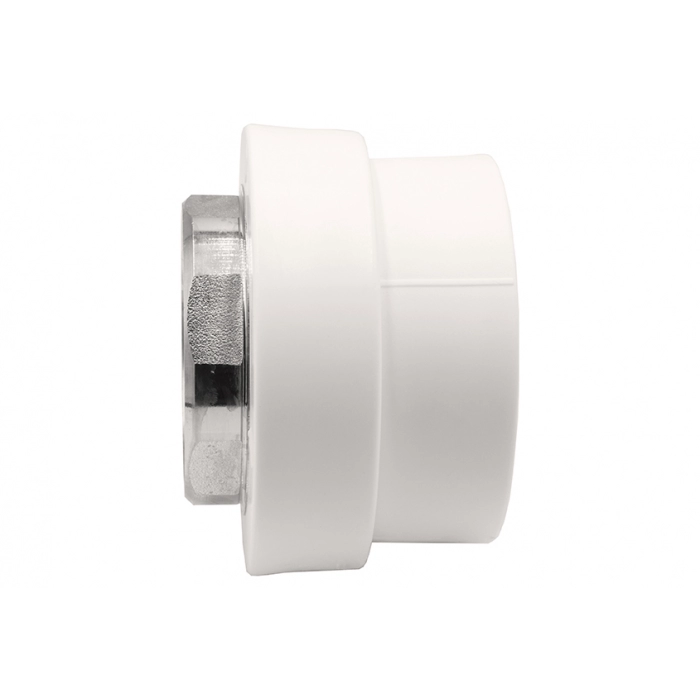

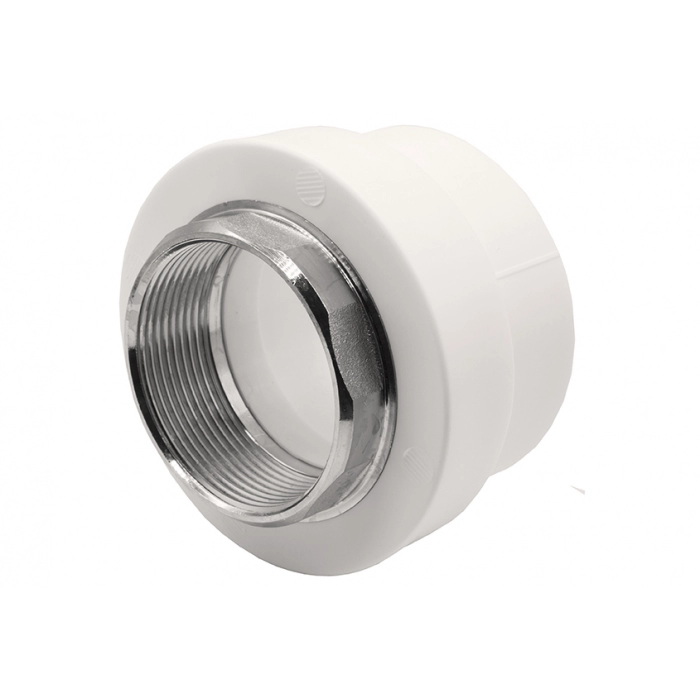

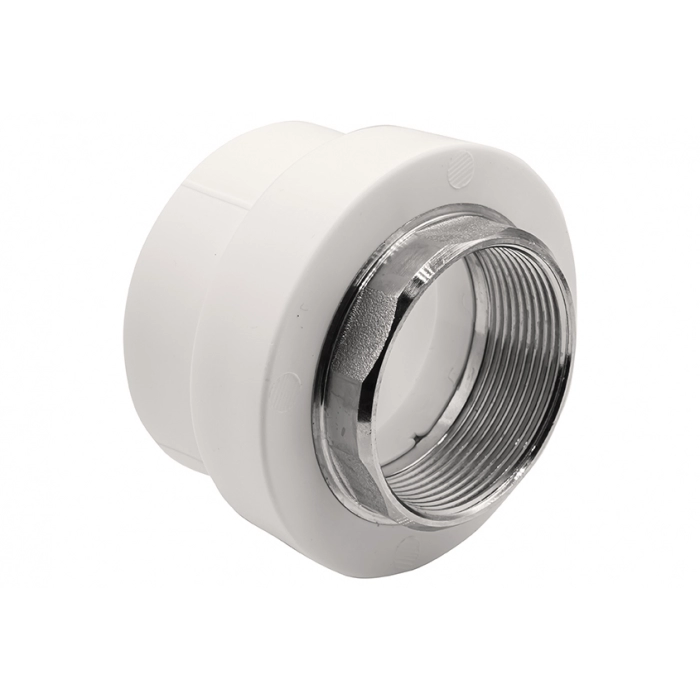

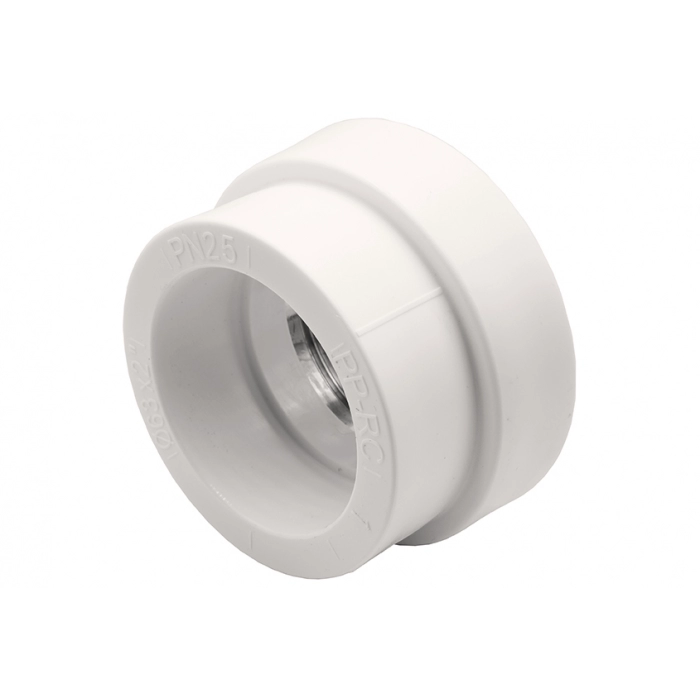

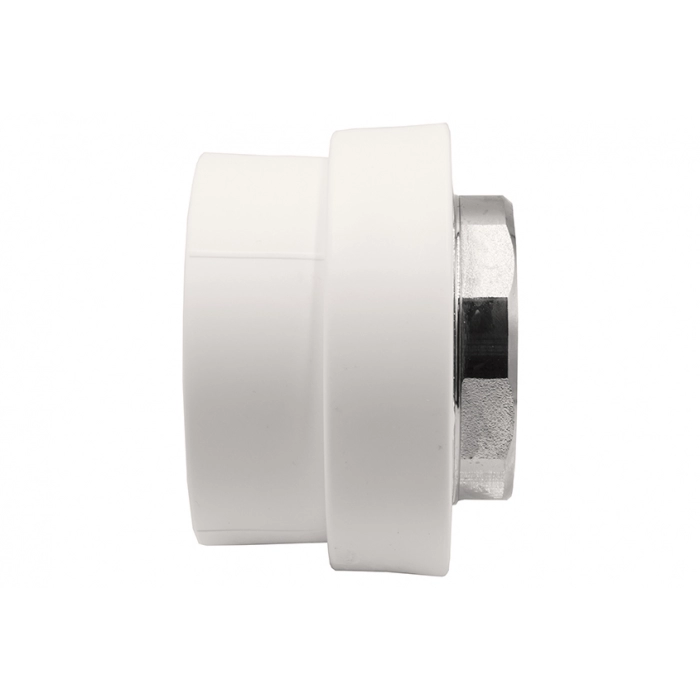

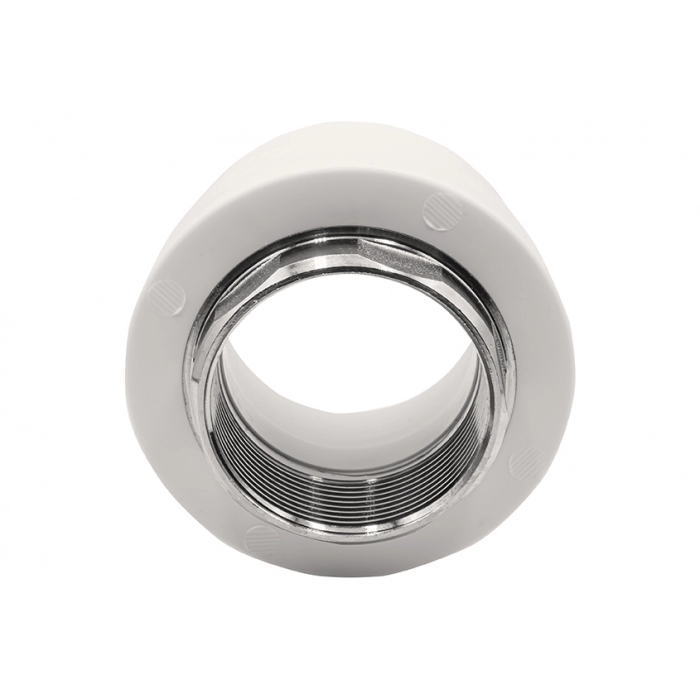

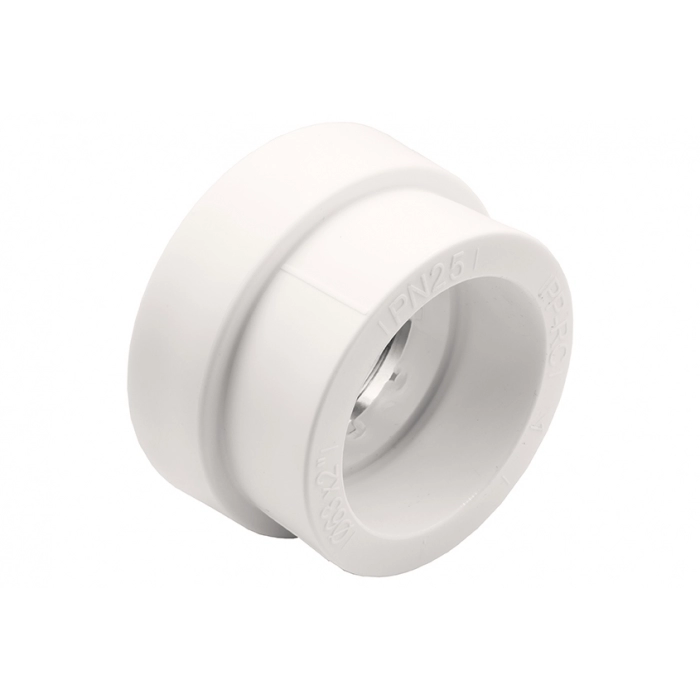

Combined coupling internal thread 63х2" turnkey EVER PLAST /white

Vendor code: UPF 010 63 06 00 W

Material: PPR

Backing part material: brass

Connection diameter: 63х2"

Operating class: 1,2,4,5, HV

Working temperature: 80°С

Maximum working temperature: 95°С

Nominal pressure, PN: 25 bar

Installation technology: socket fusion welding

Color: white

Packaging: cardboard box 30,5 х 26,6 х 21,2

Warranty: 10 years from the date of production

Packaging, pcs.: 2

Packaging, pcs.: 24

Turnkey combination couplings with internal thread are designed for connecting PPR pipes with threaded fittings.

Available in gray.

Name	Article	Size	Quantity (package/packaging), pcs.	Color
Combination coupling internal thread 32х1" turnkey EVER white	UPF 010 32 03 00 W	32х1"	10/80	white
Combination coupling internal thread 40х1 1/4" turnkey EVER white	UPF 010 40 04 00 W	40х1 1/4"	5/60	white
Combination coupling internal thread 50х1 1/2" turnkey EVER white	UPF 010 50 04 00 W	50х1 1/2"	5/30	white
Combination coupling internal thread 63х2" turnkey EVER white	UPF 010 63 06 00 W	63х2"	2/24	white

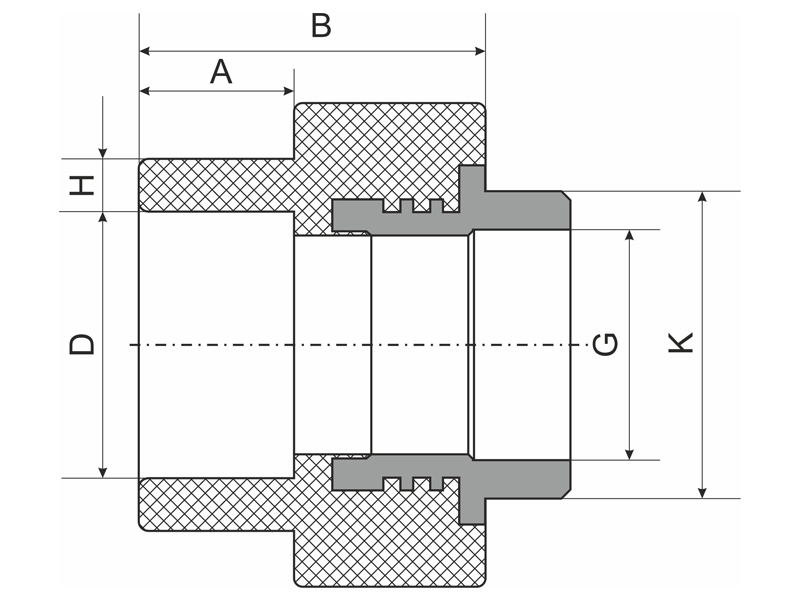

Name	Article	D,mm	G,mm	A,mm	H,mm	B,mm	K,mm
Combination coupling internal thread 32х1" turnkey EVER white	UPF 010 32 03 00 W	32	1	18,3	5,8	40,8	36,5
Combination coupling internal thread 40х1 1/4" turnkey EVER white	UPF 010 40 04 00 W	40	1 1/4	20,5	6,7	43,5	46,5
Combination coupling internal thread 50х1 1/2" turnkey EVER white	UPF 010 50 04 00 W	50	1 1/2	23,5	8,8	47,5	51
Combination coupling internal thread 63х2" turnkey EVER white	UPF 010 63 06 00 W	63	2	27,5	10,5	53,5	64
