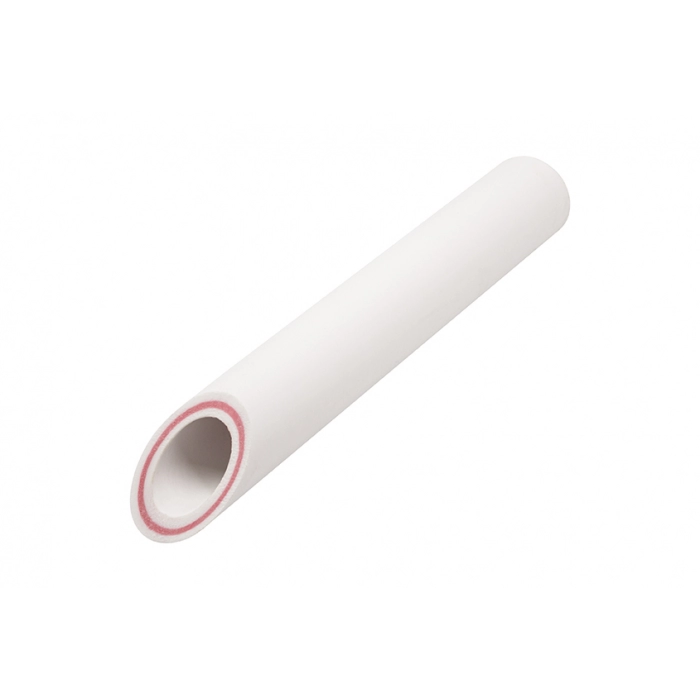

Home / Catalog / Polypropylene pipes / Pipe, reinforced with fiberglass SDR 7.4 (PN 20) / Pipe 32x4.4 PN20 (reinforced fiberglass) FIBER SDR 7.4 white.
Polypropylene pipe reinforced with glass fiber SDR 7.4 (PN20) is indispensable in the field of water supply, heating and gas supply. It combines the strength and flexibility of polypropylene with the reliability of fiberglass, this fact increases its resistance to shock, vibration and temperature changes. Subject to operating conditions, the service life of these pipes – at least 50 years.
Thanks to the use of glass fiber, glass fiber reinforced PPR pipe does not lose its properties and does not deform under large temperature differences, which guarantees its reliability in extreme conditions. It is not subject to corrosion and does not form various scales on its surface. Operating classes according to GOST 32415-2013 – 1,2,4,5, HV.
PP pipes reinforced with glass fiber are lightweight and easy to install, which reduces installation time and costs. Pipeline installation technology – socket fusion welding.
Reinforced pipe – This is a modern engineering material that has high technical characteristics and is perfect for use in utility networks for various purposes. It can be used for installation of heating, water supply and gas supply systems. Polypropylene with glass fiber can be used for hot water systems with temperatures up to 95 degrees Celsius. Permissible operating pressure at water temperature 90 °C – 6 bar, when transporting cold water – 20 bar.
Delivery form – lengths of 2 and 4 meters.
PPR pipes are available in white and gray versions.
Plastic reinforced pipes EVER PLAST – This is a reliable and durable solution for installing utility networks. Make the right choice for the safety of your system by using EVER PLAST fiberglass reinforced plastic pipes.
Unreinforced polypropylene pipes SDR 6 (PN20) EVER PLAST PP-R
Polypropylene pipes reinforced with glass fiber SDR 7.4 (PN 20) EVER PLAST PP-R/FB/PP-R
Polypropylene pipes reinforced with glass fiber SDR 6 (PN25) EVER PLAST PP-R/FB/PP-R
Polypropylene pipes reinforced with aluminum SDR6 EVER PLAST PP-R/AL/PP-R
| Name | Article | Size | Segment length, m. | Quantity per package (m/piece) | Color |
| Pipe 20x2.8 PN20 (reinforced fiberglass) FIBER SDR 7.4 white | UPP 20 028 20 74 W | 20 | 4 | 100/25 | white |
| Pipe 25x3.5 PN20 (reinforced fiberglass) FIBER SDR 7.4 white | UPP 25 035 20 74 W | 25 | 4 | 80/20 | white |
| Pipe 32x4.4 PN20 (reinforced fiberglass) FIBER SDR 7.4 white | UPP 32 044 20 74 W | 32 | 4 | 60/15 | white |
| Pipe 40x5.5 PN20 (reinforced fiberglass) FIBER SDR 7.4 white | UPP 40 055 20 74 W | 40 | 4 | 40/10 | white |
| Pipe 50x6.9 PN20 (reinforced fiberglass) FIBER SDR 7.4 white | UPP 50 069 20 74 W | 50 | 4 | 24/6 | white |
| Pipe 63x8.6 PN20 (reinforced fiberglass) FIBER SDR 7.4 white | UPP 63 086 20 74 W | 63 | 4 | 16/4 | white |

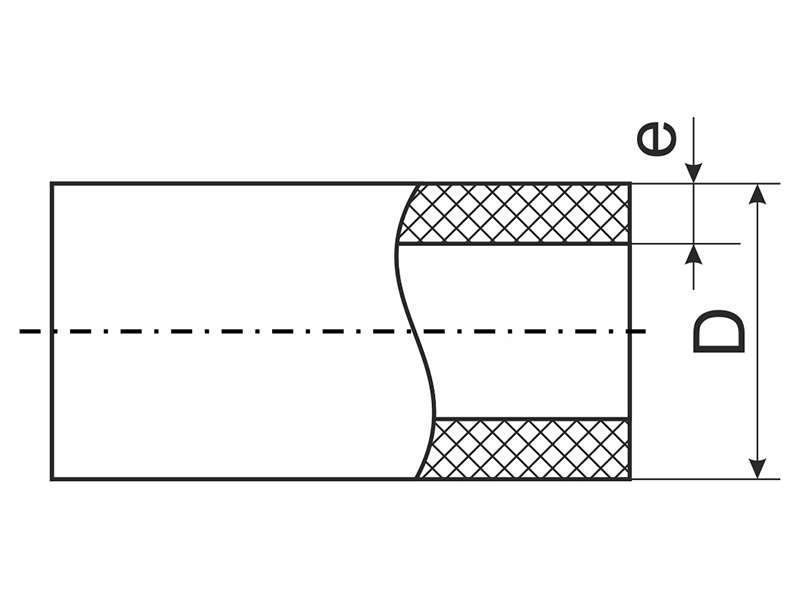

| Name | Article | Diameter (d), mm | Wall thickness (e), mm | Calculated weight 1 l.m. pipes, kg |
| Pipe 20x2.8 PN20 (reinforced fiberglass) FIBER SDR 7.4 white | UPP 20 028 20 74 W | 20 | 2.8 | 0.149 |
| Pipe 25x3.5 PN20 (reinforced fiberglass) FIBER SDR 7.4 white | UPP 25 035 20 74 W | 25 | 3.5 | 0.249 |
| Pipe 32x4.4 PN20 (reinforced fiberglass) FIBER SDR 7.4 white | UPP 32 044 20 74 W | 32 | 4,4 | 0.399 |
| Pipe 40x5.5 PN20 (reinforced fiberglass) FIBER SDR 7.4 white | UPP 40 055 20 74 W | 40 | 5.5 | 0.62 |
| Pipe 50x6.9 PN20 (reinforced fiberglass) FIBER SDR 7.4 white | UPP 50 069 20 74 W | 50 | 6.9 | 0.955 |
| Pipe 63x8.6 PN20 (reinforced fiberglass) FIBER SDR 7.4 white | UPP 63 086 20 74 W | 63 | 8.6 | 1,518 |
